Versatile and value-oriented SVGA projector

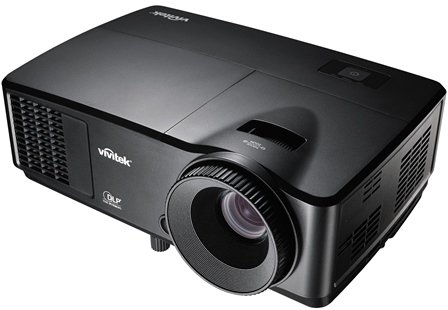

The feature packed Vivitek DS23DAA integrates a high-performance DLP® optical engine into a compact form factor. At only 1.97kg and 111.5mm high, this projector is ideal for quick installation in a meeting room, classroom and portable enough for easy transport. These BrilliantColor™ ready projectors features a high brightness, high contrast ratio, image sizes up to 290" and sports a SVGA (800 x 600) resolution with scalability up to a maximum 1080p resolution.
Additional features include 3D-Ready technology, 2W audio speaker and popular connectivity ports for easy connection to a wide variety of multimedia A/V equipment. With an operating time up to 10,000 hours (Dynamic Eco. Mode), low 0.5W power savings mode and a filter-free design, the DS23DAA’s power management system is energy efficient for a lower cost of ownership and maximum uptime. The Vivitek DS23DAA is a value oriented high-performance projector boasting reliability and ease-of-use.
Features
-DLP® and BrilliantColor™ technologies for the ultimate in picture quality
-High brightness and contrast ratio ensures a crisp and sharp image
-Native SVGA (800 x 600) resolution with display up to 1080p (1920 x1080)
-Energy efficient lamp that delivers up to 10,000 hours (Dynamic Eco. Mode) of usage
-5 segment WBRYG color wheel for improved and vivid color reproduction
-3D-Ready via DLP® Link™ and HDMI v.1.4a technology
-Audio ready with 2 watt audio speaker and audio-in/out ports
-Quiet operation with low 28dB (Eco mode) acoustic noise
-Source filtering function to save time locating device signal source
-Choice of 6 pre-set display scenario modes including: presentation, sRGB, cinema, dynamic, user 1 and user 2
-Top sided lamp cover for simple lamp removal and insertion
-Intuitive multiple language OSD (On-screen Display) menu
-Environmentally friendly with less than 0.5W of power in stand-by mode
-Portable and lightweight at only 1.97kg (4.32lbs)
-Anti-theft security features include: Kensington® Security Slot, security bar, and power button lock
Display Type： Single 0.55” DLP® Technology by TI
Brightness (Typical)： 4,000 ANSI Lumens
Native Resolution： SVGA (800 x 600)
Maximum Resolution： 1080p (1920 x 1080)
Contrast (Typical)：30,000:1
Lamp Life/Type： 4,500/6,000/10,000 Hours (Normal/Eco./Dynamic Eco), 203W/170W
Throw Ratio： 1.97 - 2.17:1
Image Size (Diagonal)： 27" - 290" (68.58 – 736.6cm)
Projection Distance： 1.2 - 11m (3.93ft - 36.1ft)
Aspect Ratio：4:3 Native
Offset： 115 ±5%
Keystone Correction：Vertical ±40°
Speakers： 2W (Mono)
I/O Connection Ports：HDMI v1.4a, VGA-In, Composite-In, Audio-In (Mini-Jack), Audio-Out (Mini-Jack), RS-232, USB (Mini-Type B (Service))
3D Compatibility： Yes (Supports DLP® Link™, HDMI v.1.4a)
Dimensions (W x D x H)：285 x 193.5 x 111.5mm (11.2" x 7.6" x 4.4")
Weight：1.97kg (4.32lbs)
Available Color(s)：Black
Noise Level：30dB/28dB (Normal/Eco Mode)
Power Supply ：AC 100-240V, 50/60Hz
Power Consumption：220W (Eco. Mode), 260W (Normal Mode), <0.5W (Standby)
Standard Accessories： AC Power Cord, VGA Cable, Remote Control w/Batteries, Documentation Kit
Optional Accessories：
Interface
